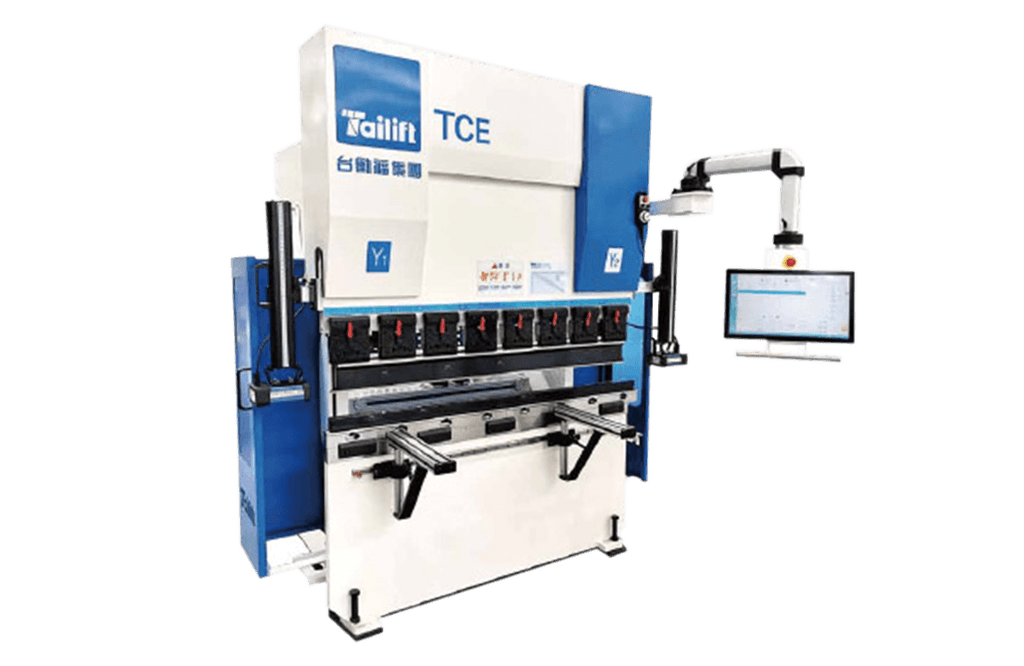

Features
High speed precision, ideal for bending small and mediumsized parts.
Ully electric and oil-free, low energy consumption, lowmaintenance.
Friendly controller with adjustable working table height formore convenient operation.
Compact machine footprint, can integrate into variousproduction processes, and easy for transportation.
Automatic Back Stopper Device
The positioning axis is driven by servo motor and is driven by two sets slide rods. Compact mechanical structure, fast operation speed, high stability and high repeatability positioningaccuracy.
The stopper can be moved to the desired position by servo motor. (Automatic movement is optional)
Quick Release and Clamping Device
Quick clamping Device for upper tools, the installation is simple and stable, prevent upper tools falls down, quick release and clamping time, and reduces setting time.
Precision Liner Scale
Minor corrections can be done in the stopper by screws. Linear scale feedback actual position and feedback control servo valve at any position.
Arbitrary lower limit
Use the Liner Scale to directly control the height of the top beam stop to avoid unnecessary blank strokes.Substantially improve production efficiency.
Movable Front Loader Bracket
Fitted in front of the worktable, position of the frontloader bracket can be adjusted manually as requested.
Laser safety device (Option)
Laser safety device protects the press brake operator from the danger of crushing between the moving andfixed part of the machine. The Laser safety device is mounted on the moving part of the machine, and the protection zone moves with the part. When an obstacle is detected, such as an operator fingers, detection is immediate and the machinecan be stopped.
Specifications
| Item | Unit | TCE50 1.6M | TCE70 2M | TCE70 2.5M | TCE100 2.5M | |
|---|---|---|---|---|---|---|
| Force | kN | 500 | 700 | 700 | 1000 | |
| Bending Length | mm | 1600 | 2000 | 2500 | 2500 | |
| Distance Between Side Frames | mm | 1230 | 1700 | 2100 | 2100 | |
| Throat | mm | 260 | 320 | 320 | 320 | |
| Bending Stroke | mm | 200 | 200 | 200 | 250 | |
| Effective Open Height | mm | 495 | 495 | 495 | 545 | |
| Operating Height | mm | 595 | 595 | 595 | 645 | |
| Drive Motor | kw | 11x2 | 21x2 | 21xx | 25x2 | |
| X-Axis speed | mm/s | 320 | 320 | 320 | 320 | |
| R-Axis speed | mm/s | 320 | 250 | 250 | 250 | |
| Y-Axis Rapid traverse speed | mm/s | 200 | 200 | 200 | 200 | |
| Y-Axis working speed | mm/s | 1~30 | 1~30 | 1~30 | 1~30 | |
| Y-Axis raising speed | mm/s | 200 | 200 | 200 | 200 | |
| Dimensions | Length (B) | mm | 1780 | 2260 | 2830 | 2890 |
| Width ( C ) | mm | 1420 | 1520 | 1520 | 1710 | |
| Height (A) | mm | 3100 | 2360 | 2360 | 2510 | |
| Weight | kg | 4000 | 5100 | 6200 | 8100 |
specifications are subject to change without prior notice.
Layout
FAQ
Not necessarily. The process of automating an entire factory and production line inherently involves a gradual integration—starting with the automation of individual machines and progressing to the integration of automated warehousing and management software—so planning can be done in phases based on on-site conditions.
It can integrate sheet metal processing equipment such as laser cutters, CNC press brakes, turret-type punch presses, welding equipment, and automatic multi-angle bending centers.
In addition to the processing equipment itself, it also includes automatic loading and unloading systems, automatic coil feeding systems, storage racks, management and control software, monitoring interfaces, and material flow scheduling systems.
Typically, sheet metal factories facing labor shortages, lengthy material handling times, frequent line changes, difficult-to-manage scheduling, or those seeking to extend continuous processing time.
Standalone machine automation is not sufficient; integration with automated warehousing and related management and control software is also required to achieve production automation control and Industry 4.0 goals.
