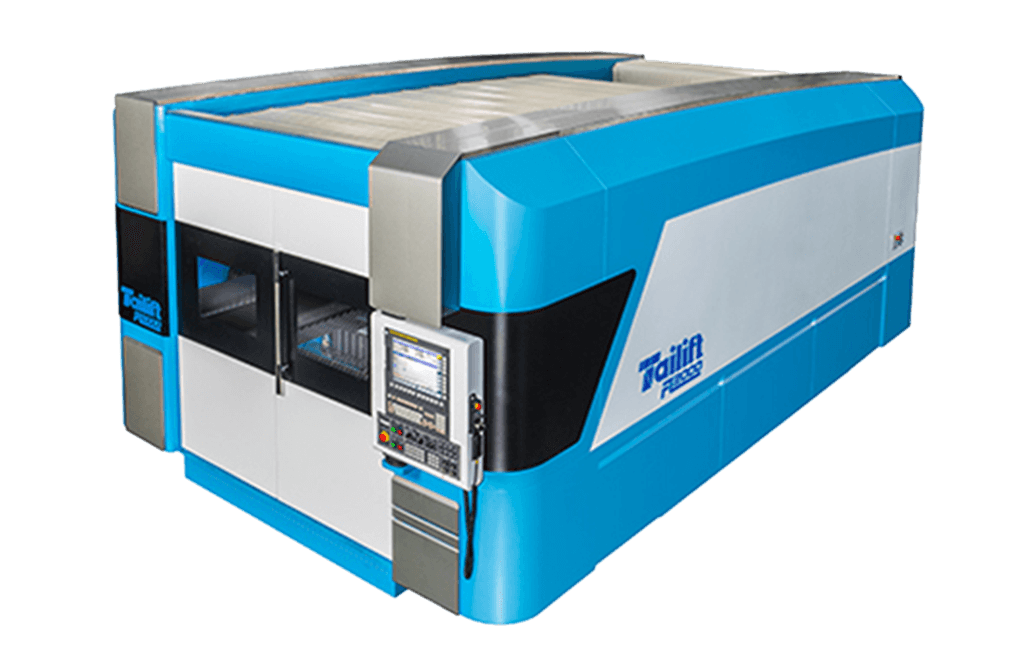

Fanuc Series Laser Cutting Metal Machine
FL2000
Machining range(X*Y) 3050*1525
Travel(X*Y*Z) 3100*1550*100
Tailift built-in operation interface.
By Optical fiber transmission to achieve Nano Interpolation, Highest-Performance, High Speed, High Accuracy ,High Quality.
High Efficiency : High Cutting Speed, Cost Effect, Faster Investment Recovery.
Low Wear Down : High Thickness Sheets Processing.
Low cutting gas consumption : Stainless Steel Sheets can processed by air also.
Low Energy Consumption and Eco-friendly : Power Consumption is 20%-30% of Co2 Laser Cutting Machine.
Low Maintenance Cost : no adjustments of light path, no mirror.
Closed Frame Base with Gantry Type (Dual-Drive) Integrated Servo Control System to Increase Working Speed and Efficiency.
Double Working Table Saves Loading/Unloading Time and Increase Productivity.
High Cutting Speed at Thin Sheets and Stable Cutting at thick sheets.
Full Covered Machine Body with OD6+ Fiber Protection Safety Glass Window Ensure the Operator Safety and Effectively controls the Laser Radiation in the
Environments, Good Light Probation.
Dust Collection System with Divided Areas: The machine is equipped with a fully enclosed splash guard for optimal machining safety. An automatic dust collection system collects dusts and waste gases in divided areas during cutting operation, ensuring a pollution-free working environment.
Specifications
| Model | Unit | FL2000 |
|---|---|---|
| Movement method | 3xes simultaneausly controlled | |
| Control method | FANUC NC:31i-LB | |
| Machining range(X*Y) | mm | 3050*1525 |
| Travel(X*Y*Z) | mm | 3100*1550*100 |
| Machining speed | m/min | (MAX)1t=28m/min(Stainless Steel) |
| Feed rate | m/min | 170 |
| Acceleration | 2G | |
| Min.positioning accuracy(X/Y) | mm | 0.05/500 |
| Repeatability accuracy | mm | ±0.02 |
| Power sorece | AC 3 ph. 4wires 380V 50Hz | |
| Power supply | KVA | 74 |
| Resonator | FANUC FIBER LASER RESONATOR FF2000i-A | |
| Wave length of laser | nm | 1070±10 |
| Laser soure position | Beside the machine | |
| Laser head | Automatic focus pre-adjustment cutting head | |
| Focusing distance for laser head | F125 | |
| Mixed gas for resonator | Depends on resonator specif. | |
| Auxiliary gas for cutting | Oxygen 10bar ; Nitrogen 25bar | |
| Table type | Hydraulic lifting system | |
| Pallet change time | s | 30 |
| Max.workpiece load | kg | 600 |
| Machining accuracy | mm | 894*4790*2700 |
| Approx.machine weight | ton | 12.05 |
| Cutting Capacity chart | Sheet metal thickness | |
| Mild Steel | mm | 12 |
| Stainless Steel | mm | 6 |
| Aluminum | mm | 6 |
| Copper | mm | 3 |
| Brass | mm | 4 |
Accessories
SAMPLE
 |  |  | |
|---|---|---|---|
| Sample | Carbon steel | Carbon steel | High reflective material |
| Model | FL2000 / FL3000 | ||
| Product | Machinery support | Machine body cover part | Metal Gasket |
| Material | 10mm Carbon steel | 6mm Carbon steel | 3mm brass |
| Assistive Gas | Oxygen | Oxygen | Oxygen |
High reflective material : stainless steel, Aluminum, copper, brass.
