Hydraulic
RH27
X Axis Traverse Speed 80 m/min
Y Axis Traverse Speed 70 m/min
Working Tables Size Brush + Ball
Features

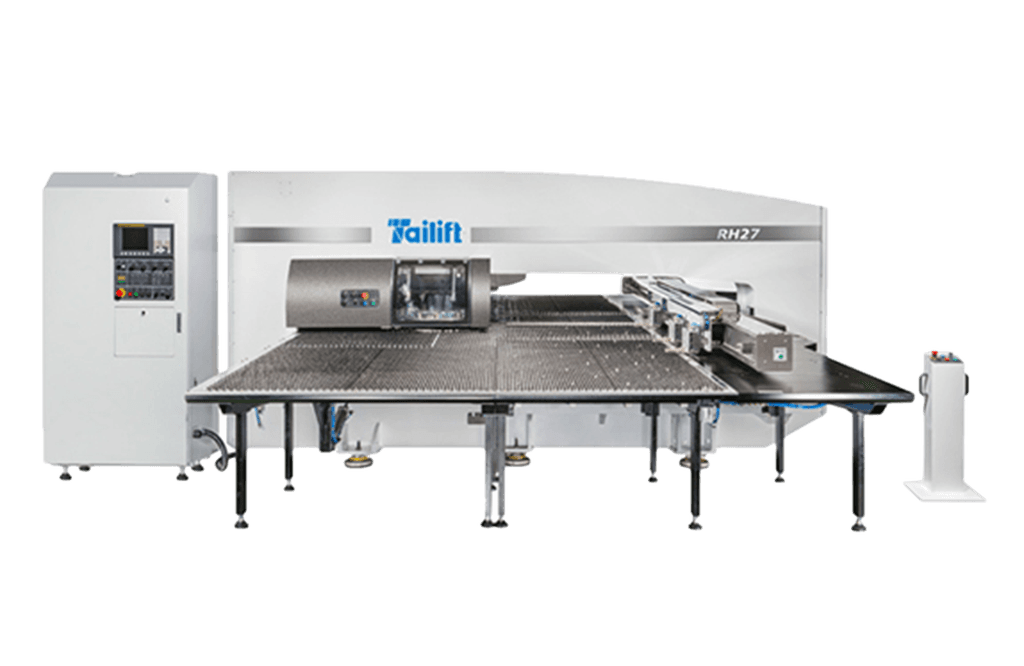

RH27 CNC Turret Punch Press is new generation Hydraulic series, inherited the features of high reliability and durability from HP series. With Germany H+L advanced servo-hydraulic system, its powerful punching performance is capable for punching big and thick sheets. Multi-functional for PUNCHING, FORMING, AND TAPPING (option) significantly reduces stand-by time and increases material utilization. Furthermore, Energy Saving, High Accuracy And High Integrated Assembly Construction, Effectively Reduces Maintenance Cost.
Energy Saving System
Differential circuit system with High/Low voltage, minimize hydraulic unit, less than 30% hydraulic oil comparable typical hydraulic system. The compact size can reduce energy consumption and maintenance cost and save consumption cost.
Closed O Shape Frame Structure
High Rigidity & High Stability
The closed O shape frame structure is analyzed by the “Finite Element Analysis” software to simulate stress / strain conditions to enable the optimal structure design.
High Tensile Strength Steel Construction
The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.
Specifications
| Item | Unit | RH27 |
|---|---|---|
| Punching Capacity | Ton | 30 |
| X axis Travel Length | mm | 2490±10 |
| Y axis Travel Length | mm | 1525±10 |
| Max Sheet Size | mm | 1525x4980 |
| Max Sheet Thickness | mm | 6.35 |
| Max.Sheet Weight | kg | 110 |
| X Axis Traverse Speed | M/min | 80 |
| Y Axis Traverse Speed | M/min | 70 |
| Max Traverse Speed | M/min | 105 |
| Punching Speed at 25mm pitch | hits/min. | 250 |
| Nibbling Speed (stroke length 4mm, pitch 1mm) | hits/min. | 360 |
| Tools Type | Thick turret | |
| Max Punching Diameter | mm | 88.9 |
| Number of Tool Stations | 34 | |
| Numer of Auto Index Stations | pcs(type) | 2(B) |
| Turret Rotating Speed | rpm | 30 |
| Auto Index Rotating Speed | rpm | 50 |
| Ram Stroke Distance | mm | 0~31 |
| Working Tables Size | Brush+Ball | |
| Number of Sheet Clamps | pcs | 3 |
| Power Supply | KVA | 26 |
| Air Supply | NL/min | 250 |
| Air Pressure | bar | 5 |
| Oil Tank Volume | Litre | 180 |
| Size of Control Cabinet | mm | 1100*535*1980 |
| Number of Controllable Axis | Axis | 4 |
| RAM Memory | KB | 512 |
| Serial Interface | RS232 / RJ45 / PCMCIA | |
| Punching Precision | mm | ±0.1 |
Specifications are subjects to change without prior notice. Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials. Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
Accessories
| Standard | Optional |
|---|---|
| Supporting Ball Set | CAD/CAM Software |
| Anti-vibration Foot Mounts | Tapping System |
| Sheet Distortion Sensor | Large Brush on Table |
| Heavy-duty Clamp | Block Lowering Device |
| Die Holder Brush | |
| Repositioning Cylinder |
Station Arrangement
- The turret is transmitted through the worm and worm gear mechanism. Two shafts are synchronously transmitted via a connecting rod for safe and dependable positioning.
- The turret is designed with 34 stations, and accommodates various tool sizes from 1/2” to 3-1/4”. Changing tool size is available upon customer request.
- Each station can be fitted with various brand tools, such as Mate and Wilson.
- Designed with two circular track stations.
- Replaceable bushing easy to maintain.

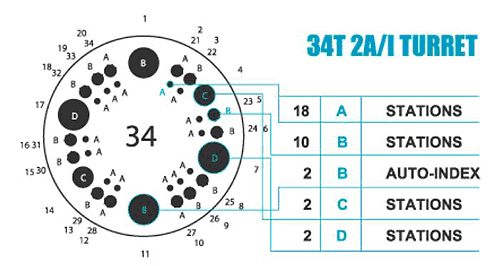

Turret with 34 Stations
| Atype (1/2") MAX diameter 12.75mm | 18 (14 accept shaped tools) |
| Btype (1-1/4") MAX diameter 31.75mm | 10 (10 accept shaped tools) |
| Btype (1-1/4") MAX diameter 31.75mm | 2 AUTO. INDEX |
| Ctype (2") MAX diameter 50.8mm | 2 (2 accept shaped tools) |
| Dtype (3-1/2") MAX diameter 88.9mm | 2 (2 accept shaped tools) |

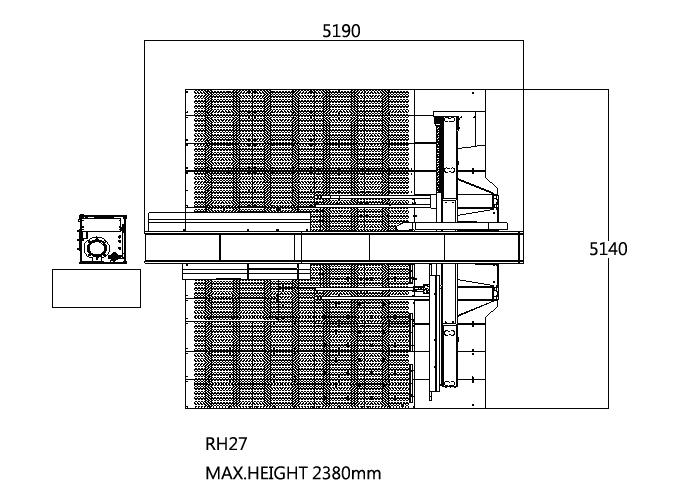

Layout
