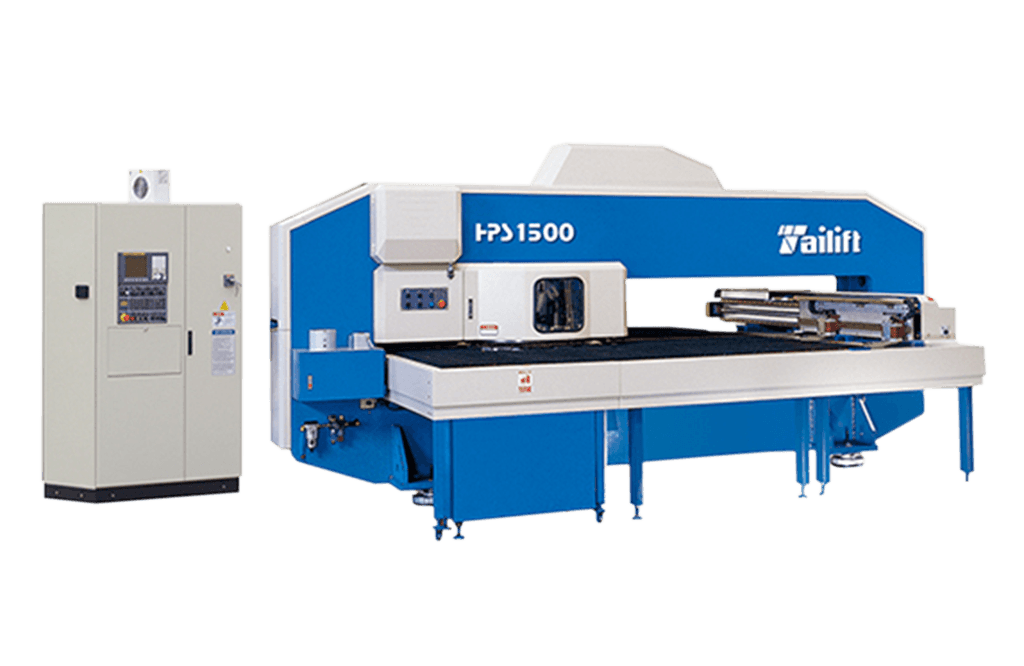

Hydraulic Servo
HPS1500
X Axis Traverse Speed 80 m/min
Y Axis Traverse Speed 70 m/min
Working Tables Size Brush
Features
PRECISION AND SPEED EFFICIENCY
PROGRAMMABLE PUNCH/ RAM STROKE DISTANCE
Advanced German made Schneider Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
To control RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy faster punching speed.
HPS1500 is with 1525±10mm.
Specifications
| Item | Unit | HPS1500 |
|---|---|---|
| Punching Capacity | Ton | 30 |
| X axis Travel Length | mm | 1525±10 |
| Y axis Travel Length | mm | 1525±10 |
| Max Sheet Size | mm | 1525x3050 |
| Max Sheet Thickness | mm | 6.35 |
| Max.Sheet Weight | kg | 110 |
| X Axis Traverse Speed | M/min | 80 |
| Y Axis Traverse Speed | M/min | 70 |
| Max Traverse Speed | M/min | 105 |
| Punching Speed at 25mm pitch | hits/min. | 360 |
| Nibbling Speed (stroke length 4mm, pitch 1mm) | hits/min. | 600 |
| Tools Type | Thick turret | |
| Max Punching Diameter | mm | 114.3 |
| Number of Tool Stations | 40 | |
| Numer of Auto Index Stations | pcs(type) | 2D |
| Turret Rotating Speed | rpm | 40 |
| Auto Index Rotating Speed | rpm | 50 |
| Ram Stroke Distance | mm | 0-31 |
| Working Tables Size | Ball+Brush | |
| Number of Sheet Clamps | pcs | 2 |
| Power Supply | KVA | 35 |
| Air Supply | NL/min | 250 |
| Oil Tank Volume | Litre | 250 |
| Air Pressure | bar | 5 |
| Size of Control Cabinet | mm | 1200 × 600 × 1900 |
| CNC Controller | FANUC Oi-PF | |
| Number of Controllable Axis | Axis | 4 |
| RAM Memory | KB | 512 |
| Serial Interface | RS232 | |
| Punching Precision | mm | ±0.1 |
| Machine Dimension (L × W × H) | mm | 5190*3250*2550 |
| Net Weight (approx.) | kgf | 14000 |
Specifications are subjects to change without prior notice. Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials. Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

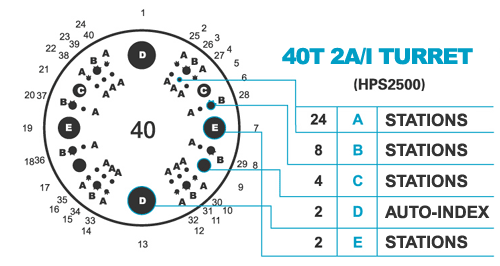

Station Arrangement
| A type 1/2" MAX diameter 12.75mm | 24 ( 8 accept shaped tools ) |
| B type 1-1/4" MAX diameter 31.75mm | 8 ( 8 accept shaped tools ) |
| C type 2" MAX diameter 50.80mm | 4 ( 4 accept shaped tools ) |
| D type 3-1/2" MAX diameter 88.90mm | 2 AUTO. INDEX |
| E type 4-1/2" MAX diameter 114.30mm | 2 ( 2 accept shaped tools ) |

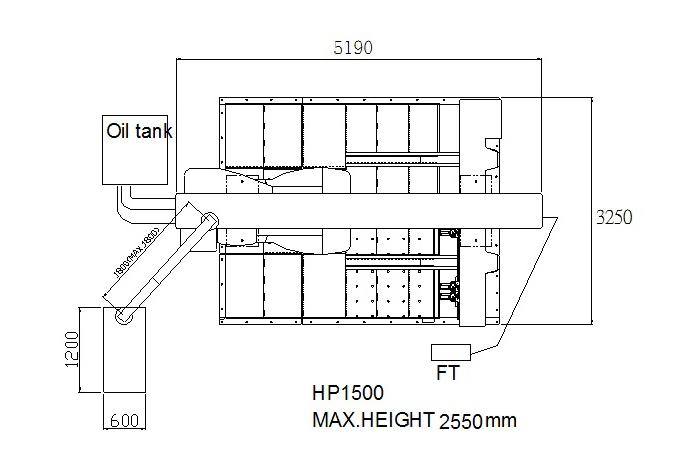

Layout
