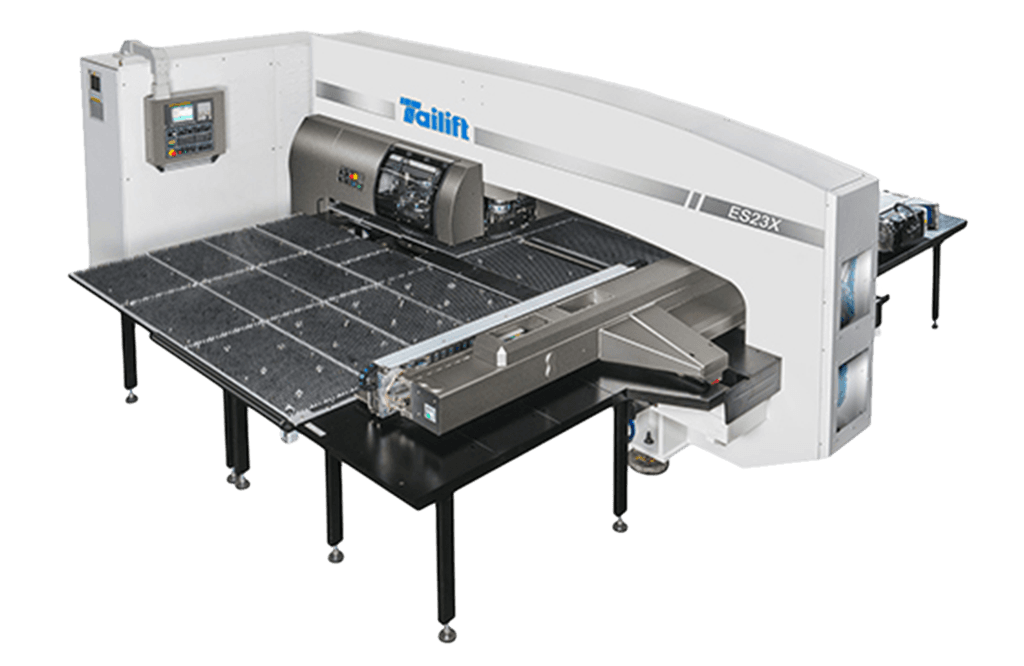

Electro Servo
ES23X
X Axis Traverse Speed 80 m/min
Y Axis Traverse Speed 70 m/min
Working Tables Size Brush + Ball
Features
Tailift’s newly launched, ES23X, AC Servo drive and Numerical Control Technology. Featured with HIGH SPEED, HIGH PRECISION, ENERGY SAVING, AND LOW NOISE. Equipped over-load protection, ES23X is an effective implement for thinner sheet metal. ES23x combined with processing abilities of PUNCHING, FORMING, ROLLER CUTTING AND TAPPING, an all-in-one machine. The integration assembly reduces floor space requirements effectively. Low average electricity consumption, energy-saving, eliminating the hydraulic. This ECO friendly product is the major milestone for Tailift’s R&D.

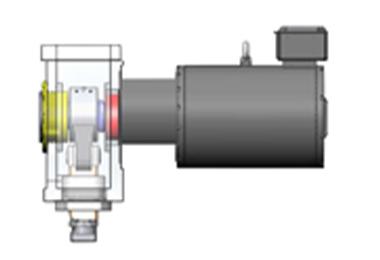

AC servo electric system
ES23x equipped with high efficient AC Servo motor with single servo crank type punch head assembly without flywheel which results in high precision, Low noise and power consumption is only half of hydraulic models. No need of hydraulic oil and worry about environmental issues. High punching speed reduces the production time and ensure cost down.

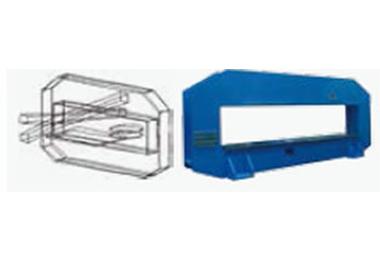

Closed O Shape Frame Structure
High Rigidity & High Stability
The closed O shape frame structure is analyzed by the “Finite Element Analysis” software to simulate stress / strain conditions, enables the optimal structure design.
High Tensile Strength Steel Construction
The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.

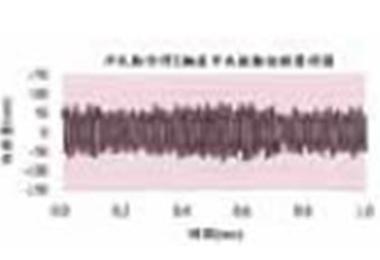

Transient State Analysis

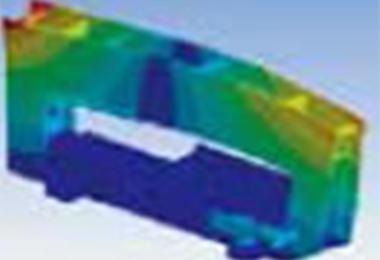

Static Analysis

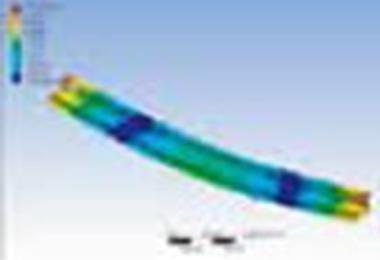

Model Analysis
Transient State Analysis
Specifications
| Item | Unit | ES23x |
|---|---|---|
| Punching Capacity | Ton | 30 |
| X axis Travel Length | mm | 2490±10 |
| Y axis Travel Length | mm | 1250±10 |
| Max Sheet Size | mm | 1250x4980 |
| Max Sheet Thickness | mm | 3 |
| Max.Sheet Weight | kg | 110 |
| X Axis Traverse Speed | m/min | 80 |
| Y Axis Traverse Speed | m/min | 70 |
| Max Traverse Speed | m/min | 105 |
| Punching Speed at 25mm pitch | hits/min | 360 |
| Tool Type | Thick turret | |
| Max Punching Diameter | mm | 88.9 |
| Number of Tool Stations | 48/57 | |
| Numer of Auto Index Stations | pcs(type) | 2B+2C /2B+1C |
| Turret Rotating Speed | rpm | 30 |
| Auto Index Rotating Speed | rpm | 100 |
| Ram Stroke Distance | mm | 0-31 |
| Working Table | Brush + Ball | |
| Number of Sheet Clamps | pcs | 3 |
| Air Supply | NL/min | 250 |
| Air Pree | bar | 6 |
| Size of Control Cabinet | mm | 2150 x 700 x 2000 |
| Number of Controllable Axis | Axis | 5+1 |
| RAM Memory | KB | 512 |
| Serial Interface | RS232 / RJ45 / PCMCIA | |
| Punching Precision | mm | ±0.1 |
| Machine Dimensions(LxWxH) | mm | 4690 x 5105 x 2110 |
| Net Weight (approx.) | kgf | 14000 |
Specifications are subjects to change without prior notice. Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials. Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
Accessories
| Optional |
|---|
| CAD/CAM Software |
| Tapping System |
| Hard brush Table |
| Block Lowering Device |
| Independent Control Cabin |
Station Arrangement

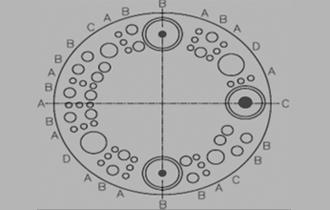

Standard - 57 stations
| Type | Spec. | Q'ty |
|---|---|---|
| A | 1/2" | 30 |
| B | 1 1/4" | 20 |
| C | 2" | 2 |
| D | 3 1/2" | 2 |
| Auto Index | ||
| B | 1 1/4" | 2 |
| C | 2" | 1 |

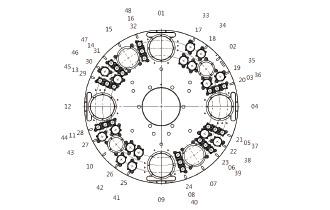

Optional - 48 stations
| Type | Spec. | Q'ty |
|---|---|---|
| A | 1/2" | 24 |
| B | 1 1/4" | 16 |
| C | 2" | 2 |
| D | 3 1/2" | 2 |
| Auto Index | ||
| B | 1 1/4" | 2 |
| C | 2" | 2 |
