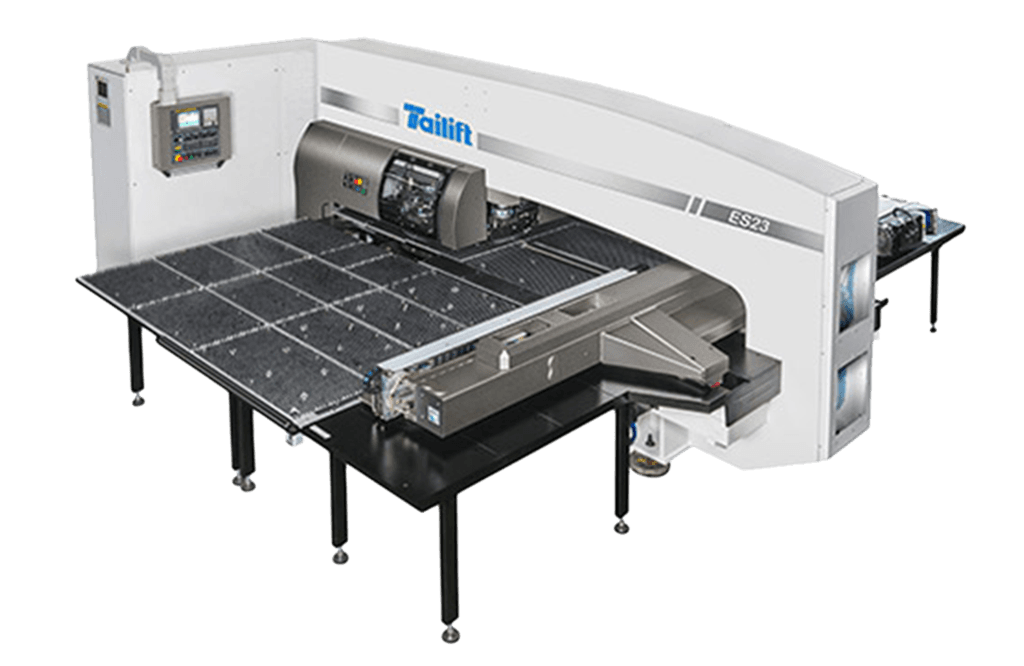

Electro Servo
ES23
X Axis Traverse Speed 80 m/min
Y Axis Traverse Speed 70 m/min
Working Tables Size Brush + Ball
Features
Tailift’s newly launched, ES23, AC Servo drive and numerical control technology. Featured with HIGH SPEED, HIGH PRECISION, ENERGY SAVING, AND LOW NOISE. Equipped over-load protection, ES23 is an effective implement for thinner sheet metal. ES23 combined with processing abilities of PUNCHING, FORMING, ROLLER FORMING AND TAPPING, an all-in-one machine. The integration assembly reduces floor space requirements effectively. LOW ELECTRICITY CONSUMPTION, ENERGY-SAVING, ELIMINATING THE HYDRAULIC . This ECO friendly product is the major milestone for Tailift’s R&D.

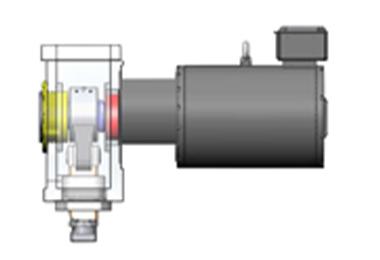

AC servo electric system
ES23 equipped with high efficient AC Servo motor with single servo crank type punch head assembly without flywheel which results in high precision, Low noise and power consumption is only half of hydraulic models. No need of hydraulic oil and worry about environmental issues. High punching speed reduces the production time and ensure cost down.

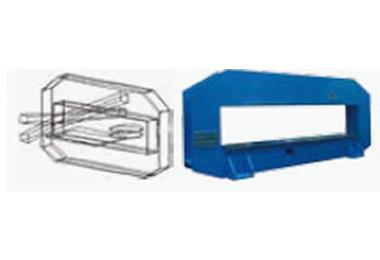

Closed O Shape Frame Structure
High Rigidity & High Stability
The closed O shape frame structure is analyzed by the “Finite Element Analysis” software to simulate stress / strain conditions, enables the optimal structure design.
High Tensile Strength Steel Construction
The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.

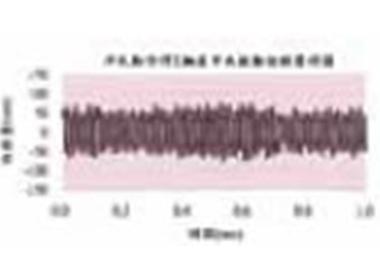

Transient State Analysis

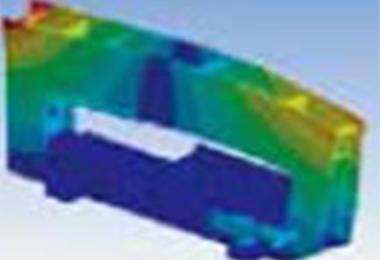

Static Analysis

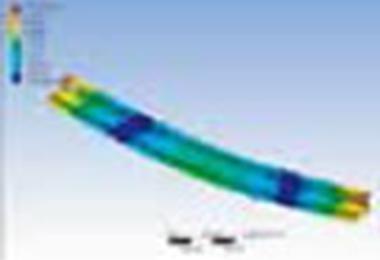

Model Analysis
Transient State Analysis
Specifications
| Item | Unit | ES23 |
|---|---|---|
| Punching Capacity | Ton | 30 |
| X Traverse Length | mm | 2490±10 |
| Y Traverse Length | mm | 1250±10 |
| Max Sheet Size | mm | 1250x4980 |
| Max Sheet Thickness | mm | 3 |
| Max Mass of Material | kg | 110 |
| X Axis Traverse Speed | m/min | 80 |
| Y Axis Traverse Speed | m/min | 70 |
| Max Traverse Speed | m/min | 105 |
| Punching Speed at 25mm pitch | hits/min | 360 |
| Tool Type | Thick turret | |
| Max Punching Diameter | mm | 88.9 |
| Number of Tool Stations | 34 | |
| Numer of Auto Index Stations | pcs(type) | 2B |
| Turret Rotating Speed | rpm | 30 |
| Auto Index Rotating Speed | rpm | 100 |
| Ram Stroke Distance | mm | 0-31 |
| Working Table | Brush + Ball | |
| Number of Sheet Clamps | pcs | 3 |
| Air Supply | NL/min | 250 |
| Air Pree | bar | 6 |
| Size of Control Cabinet | mm | 2150 x 700 x 2000 |
| Number of Controllable Axis | Axis | 4+1 |
| RAM Memory | KB | 512 |
| Serial Interface | RS232 / RJ45 / PCMCIA | |
| Punching Precision | mm | ±0.1 |
| Machine Dimensions(LxWxH) | mm | 4690 x 5105 x 2110 |
| Machine Net Weight (Approx) | kgf | 14000 |
Specifications are subjects to change without prior notice. Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials. Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
Accessories
| Standard | Optional |
|---|---|
| Supporting Ball Set | CAD/CAM Software |
| Anti-vibration Foot Mounts | Tapping System |
| Sheet Distortion Sensor | Hard brush Table |
| Heavy-duty Clamp | Block Lowering Device |
| Die Holder Brush | Independent Control Cabin |
| Repositioning Cylinder |
Station Arrangement
- The turret is transmitted through the worm and worm gear mechanism. Two shafts are synchronously transmitted via a connecting rod for safe and dependable positioning.
- The turret is designed with 34 stations, and accommodates various tool sizes from 1/2” to 3-1/4”. Changing tool size is available upon customer request.
- Each station can be fitted with various brand tools, such as Mate and Wilson.
- Designed with two circular track stations.
- Replaceable bushing easy to maintain.

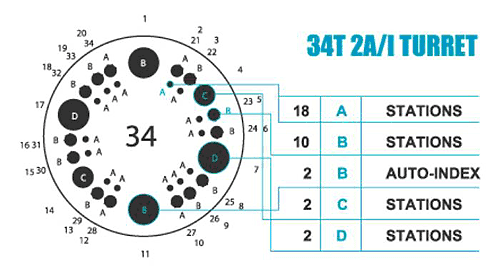

Turret with 34 Stations
| Atype (1/2") MAX diameter 12.75mm | 18 (14 accept shaped tools) |
| Btype (1-1/4") MAX diameter 31.75mm | 10 (10 accept shaped tools) |
| Btype (1-1/4") MAX diameter 31.75mm | 2 AUTO. INDEX |
| Ctype (3-1/2") MAX diameter 50.8mm | 2 (2 accept shaped tools) |
| Dtype (1-1/4") MAX diameter 88.9mm | 2 (2 accept shaped tools) |
