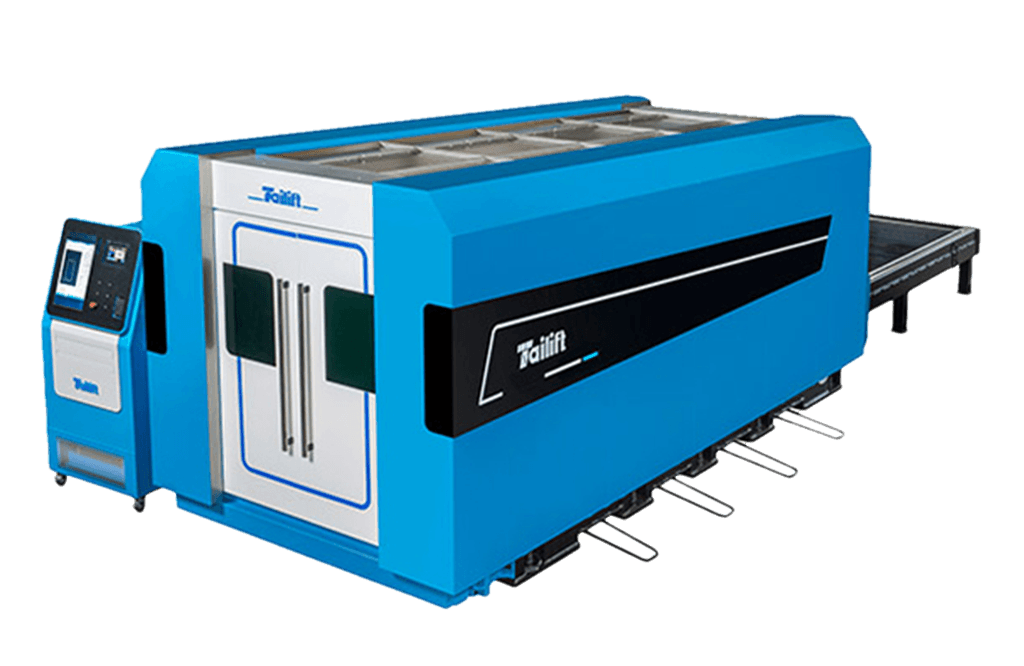

TL Series-Classic (Full Splash Cover with Exchange Table Cutting Machine)
TL6020
Machining range(X*Y) 2000*6000
Travel(X*Y*Z) 2015*6050*200
User friendly
Fast cutting speed, low operating cost and fast return on investment.
Auto Edge finding. Effectively used in big sheets.
The electric energy conversion heat energy conversion rate is high, and an effective power saving effect is achieved.
Low Maintenance. without adjustments of light path and reflect lens, no service requirements.
Closed Frame Base with Gantry Type (Dual-Drive) Integrated Servo Control System to Increase Working Speed and Efficiency.
Double Working Table Saves Loading/Unloading Time and Increase Productivity.
Full Covered Machine Body with OD6+ Fiber Protection Safety Glass Window Ensure the Operator Safety and Effectively controls the Laser Radiation in the Environments, Good Light Probation.
Specifications
| Model | Unit | TL6020-20 | TL6020-25 |
|---|---|---|---|
| Movement method | 3xes simultaneausly controlled | ||
| Control method | Cypcut+Advantech controller | ||
| Machining range(X*Y) | mm | 6000*2000 | |
| Travel(X*Y*Z) | mm | 6100*2050*200 | |
| Acceleration | 1.5G | ||
| Min.positioning accuracy(X/Y) | mm | 0.05/500 | |
| Repeatability accuracy | mm | ±0.02 | |
| nLIGHT alta Resonator | W | 2000 | 2500 |
| Laser head | Automatic | ||
| Table type | Pallet Changer | ||
| Pallet change time | s | 15~20 | |
| Max.workpiece load | kg | 1500 | 1900 |

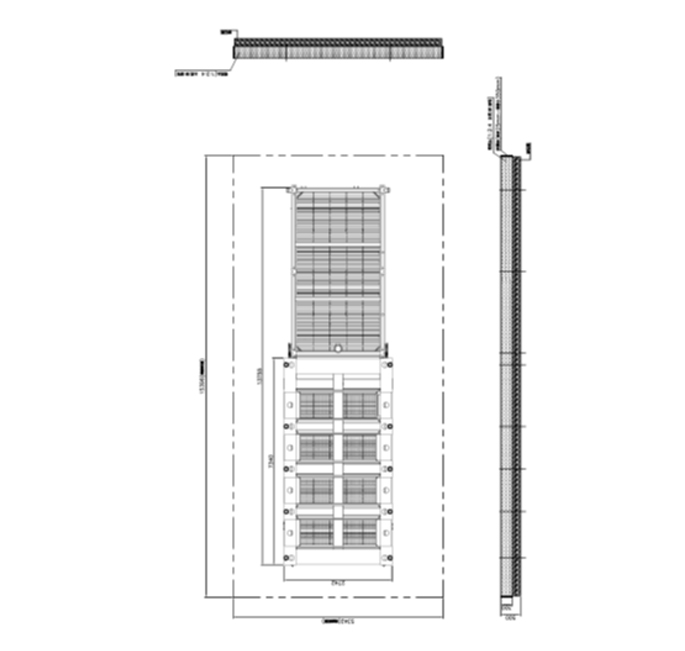

| Machining dimensions(L*W*H) | mm | 14405 x 3150 x 2575 | |
| Machining accuracy | ±0.10 | ||
| Machine weight | KG | 11000 | |
| Model | Unit | TL6020-30 | TL6020-40 |
|---|---|---|---|
| Movement method | 3xes simultaneausly controlled | ||
| Control method | Cypcut+Advantech controller | ||
| Machining range(X*Y) | mm | 6000*2000 | |
| Travel(X*Y*Z) | mm | 6100*2050*200 | |
| Acceleration | 1.5G | ||
| Min.positioning accuracy(X/Y) | mm | 0.05/500 | |
| Repeatability accuracy | mm | ±0.02 | |
| nLIGHT alta Resonator | W | 3000 | 4000 |
| Laser head | Automatic | ||
| Table type | Pallet Changer | ||
| Pallet change time | s | 15~20 | |
| Max.workpiece load | kg | 1900 | 2400 |
| Machining dimensions(L*W*H) | mm | 14405 x 3150 x 2575 | |
| Machining accuracy | ±0.10 | ||
| Machine weight | KG | 11000 | |
Accessories
FAQ
Not necessarily. The process of automating an entire factory and production line inherently involves a gradual integration—starting with the automation of individual machines and progressing to the integration of automated warehousing and management software—so planning can be done in phases based on on-site conditions.
It can integrate sheet metal processing equipment such as laser cutters, CNC press brakes, turret-type punch presses, welding equipment, and automatic multi-angle bending centers.
In addition to the processing equipment itself, it also includes automatic loading and unloading systems, automatic coil feeding systems, storage racks, management and control software, monitoring interfaces, and material flow scheduling systems.
Typically, sheet metal factories facing labor shortages, lengthy material handling times, frequent line changes, difficult-to-manage scheduling, or those seeking to extend continuous processing time.
Standalone machine automation is not sufficient; integration with automated warehousing and related management and control software is also required to achieve production automation control and Industry 4.0 goals.
