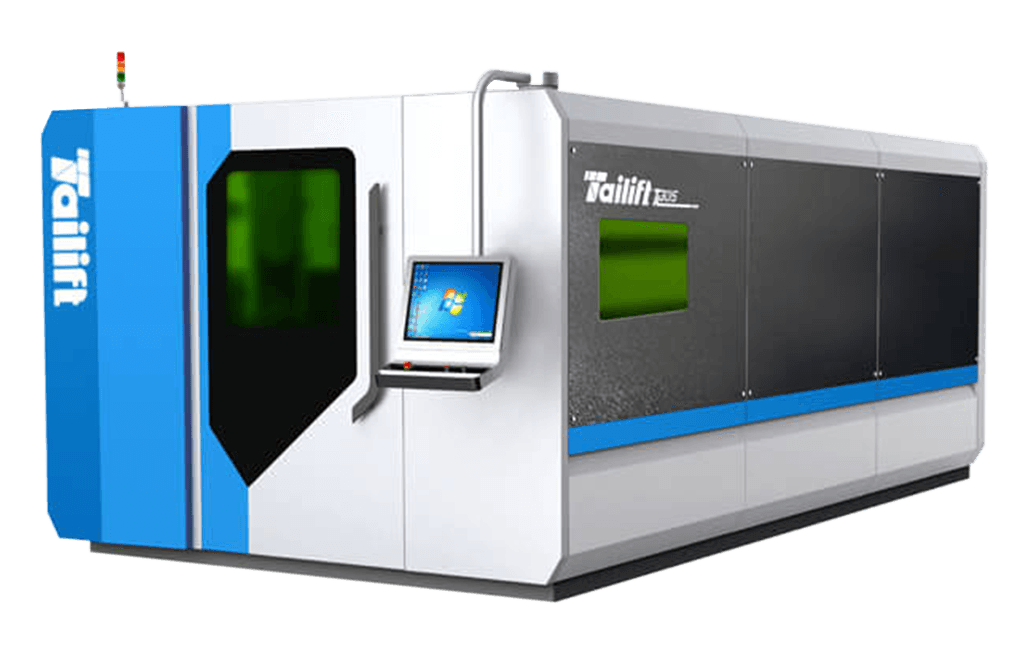

TL Series-Classic (Full Splash Cover with Exchange Table Cutting Machine)
TL3015
Machining range(X*Y) 1500*3000
Travel(X*Y*Z) 1525*2050*150
User friendly
Fast cutting speed, low operating cost and fast return on investment.
Auto Edge finding. Effectively used in big sheets.
The electric energy conversion heat energy conversion rate is high, and an effective power saving effect is achieved.
Low Maintenance. without adjustments of light path and reflect lens, no service requirements.
Closed Frame Base with Gantry Type (Dual-Drive) Integrated Servo Control System to Increase Working Speed and Efficiency.
Double Working Table Saves Loading/Unloading Time and Increase Productivity.
Full Covered Machine Body with OD6+ Fiber Protection Safety Glass Window Ensure the Operator Safety and Effectively controls the Laser Radiation in the Environments, Good Light Probation.
Specifications
| Model | Unit | TL3015-12 | TL3015-20 |
|---|---|---|---|
| Resonator | W | 1200 | 2000 |
| Movement method | 3xes simultaneausly controlled | ||
| Control method | Cypcut+Advantech controller | ||
| Machining range(X*Y) | mm | 1500*3000 | |
| Travel(X*Y*Z) | mm | 1525*3050*150 | |
| Acceleration | 1.5G | ||
| Min.positioning accuracy(X/Y) | mm | 0.05/500 | |
| Repeatability accuracy | mm | ±0.02 | |
| Laser head | Manual focus adjustment/ Automatic (OP) | ||
| Table type | Pallet Changer | ||
| Pallet change time | s | 10~15 | |
| Machining dimensions(L*W*H) | mm | 8209x2300x2400 | |
| Machining accuracy | ±0.10 | ||
| Machine weight | kg | 7000 | |
| Model | Unit | TL3015-25 | TL3015-30 |
|---|---|---|---|
| Resonator | W | 2500 | 3000 |
| Movement method | 3xes simultaneausly controlled | ||
| Control method | Cypcut+Advantech controller | ||
| Machining range(X*Y) | mm | 1500*3000 | |
| Travel(X*Y*Z) | mm | 1525*3050*150 | |
| Acceleration | 1.5G | ||
| Min.positioning accuracy(X/Y) | mm | 0.05/500 | |
| Repeatability accuracy | mm | ±0.02 | |
| Laser head | Manual focus adjustment/ Automatic (OP) | ||
| Table type | Pallet Changer | ||
| Pallet change time | s | 10~15 | |
| Machining dimensions(L*W*H) | mm | 8209x2300x2400 | |
| Machining accuracy | ±0.10 | ||
| Machine weight | kg | 7000 | |

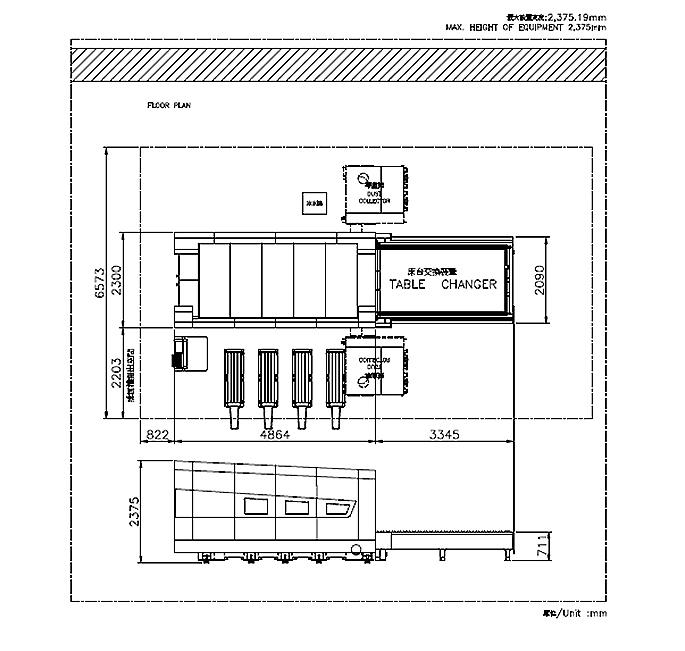

FLOOR PLAN
SAMPLE
 |  | |
|---|---|---|
| Sample | High Reflective Material | Carbon Steel |
| Model | TL3015 / 4020 | |
| Product | Metal gasket | Auto mobile accessories |
| Material | Stainless steel, Aluminum, Copper, Brass | Carbon steel |
| Assistive Gas | Nitrogen | Oxygen |
High reflective material : stainless steel, Aluminum, copper, brass.
