Features
Each time is 0.2 seconds high speed, low power consumption, simple automatic operation.
Applicable to the wide range of materials,compatible with various loading and unloading methods.
Tailift wisdom of exclusive software, easy to operate smoothly.
Cloud management and maintenance, real-time monitoring of operation.
The daily maintenance is simple and low cost.
Without making molds, free to design complex shapes and production at any time.
The 13 axes move simultaneously, the bending movement is smooth, and the operation is highly coordinated.
Specifications
| Item | Unit | TBC2500 |
|---|---|---|
| Minimum accuracy | mm | 0.01 |
| Fastest bending speed | sec | 0.5sec秒/each刀 |
| Maximum bending width | mm | 2000 |
| Maximum bending size | mm | 2000x1500mm |
| Bending height | mm | 170mm |
| Rated voltage | V | 380V |
| Peak power | KW | 23KW |
| Average power | KW | 2.2KW |
| Noise | dB | 40dB |
| Dimensions(LxWxH) | cm | 400 x 255 x 310 |
| Total weight | tons | 18 |
| Operating environment | windows 7 up ad | |
| Maximum bending thickness | mm | MS 1.5mm |
| Minimum material thickness | mm | 0.35mm |
| Minimum inner size of four sides forming | mm | 110mm x 280mm |
| Minimum inner size of bilateral forming | mm | 110mm |
| Number of axes | 13 |

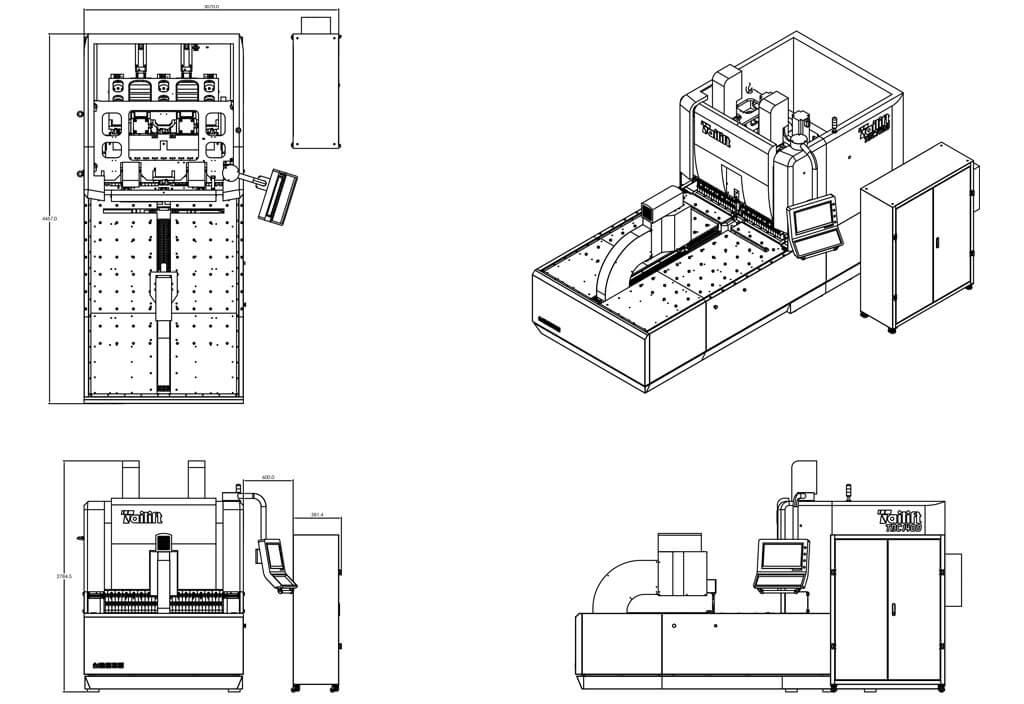

Floor Plan
SAMPLE
FAQ
Not necessarily. The process of automating an entire factory and production line inherently involves a gradual integration—starting with the automation of individual machines and progressing to the integration of automated warehousing and management software—so planning can be done in phases based on on-site conditions.
It can integrate sheet metal processing equipment such as laser cutters, CNC press brakes, turret-type punch presses, welding equipment, and automatic multi-angle bending centers.
In addition to the processing equipment itself, it also includes automatic loading and unloading systems, automatic coil feeding systems, storage racks, management and control software, monitoring interfaces, and material flow scheduling systems.
Typically, sheet metal factories facing labor shortages, lengthy material handling times, frequent line changes, difficult-to-manage scheduling, or those seeking to extend continuous processing time.
Standalone machine automation is not sufficient; integration with automated warehousing and related management and control software is also required to achieve production automation control and Industry 4.0 goals.
