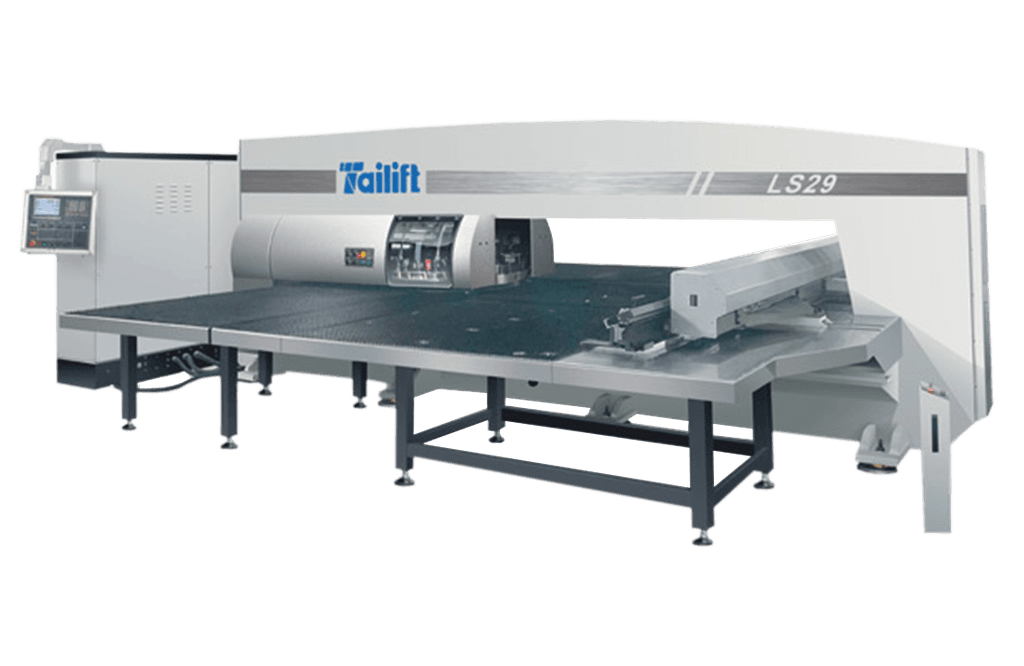

Features
Tailift newly launched,LS29, AC Servo drive and numerical control technology. Featured with high speed, high precision,energy saving, and loe noise. Equipped over-load protection, LS29 is an effective implement for thinner sheet metal.
LS29 combined with processing abilities of punching, forming, roller cutting and tapping, an all-in-one machine. Thr integration assEmbly reduces floor space requirements effectivelu. Low avarage electrivity consumption, energy-saving,elminating the hydraulic, This ECO friendly product is the major milestone for Tailift R&D.
AC servo electric system

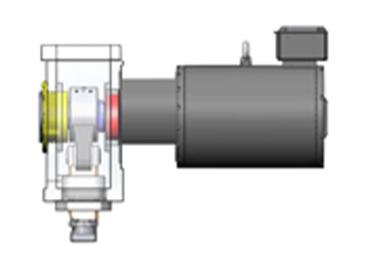

LS29 equipped with high efficient AC Servo motor with single servo crank type punch head assembly without flywheel which results in high precision, Low noise and power consumption is only half of hydraulic models. No need of hydraulic oil and worry about environmental issues. High punching speed reduces the production time and ensure cost down.

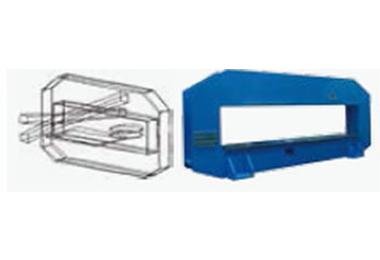

Closed O Shape Frame Structure
High Rigidity & High Stability
The closed O shape frame structure is analyzed by the “Finite Element Analysis” software to simulate stress / strain conditions, enables the optimal structure design.
High Tensile Strength Steel Construction
The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.

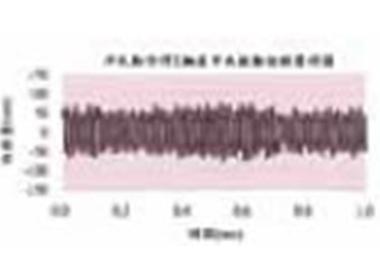

Transient State Analysis

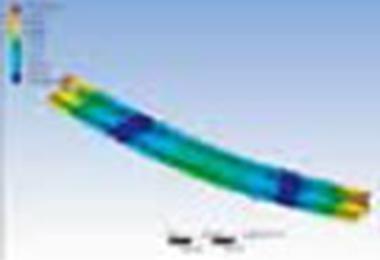

Static Analysis

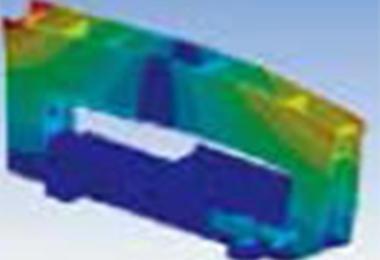

Model Analysis
Transient State Analysis
Specifications
| Item | Unit | LS29 |
|---|---|---|
| Punching Capacity | Ton | 25 |
| X Traverse Length | mm | 2500±10 |
| Y Traverse Length | mm | 2000±10 |
| Max Sheet Size | mm | 2000×5000 |
| Max Sheet Thickness | mm | 6t(SS400) ; 3t(SUS) |
| Max Mass of Material | kg | 150 |
| X Axis Traverse Speed | m/min | 70 |
| Y Axis Traverse Speed | m/min | 70 |
| Max Traverse Speed | m/min | 100 |
| Punching Speed at 25mm pitch | hits/min | 320 |
| Tool Type | Thick turret | |
| Max Punching Diameter | mm | 88.9 |
| Number of Tool Stations | 28/32 | |
| 自動轉刀刀站數 | Pcs | 2B |
| Turret Rotating Speed | rpm | 30 |
| Auto Index Rotating Speed | rpm | 40 |
| Ram Stroke Distance | mm | 0-31 |
| Working Table | Brush + Ball | |
| Number of Sheet Clamps | pcs | 3 |
| Air Supply | NL/min | 250 |
| Air Pree | bar | 5 |
| Serial Interface | RS232 / RJ45 / PCMCIA | |
| Punching Precision | mm | ±0.1 |
| Machine Dimensions(LxWxH) | mm | 6500 × 5200 × 2250 |
| Machine Net Weight (Approx) | kg | 20000 |
Specifications are subjects to change without prior notice. Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials. Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
Accessories
| Standard | Optional |
|---|---|
| Supporting Ball Set | CAD/CAM Software |
| Anti-vibration Foot Mounts | Tapping System |
| Sheet Distortion Sensor | Hard brush Table |
| Heavy-duty Clamp | Block Lowering Device |
| Die Holder Brush | Independent Control Cabin |
| Repositioning Cylinder |
