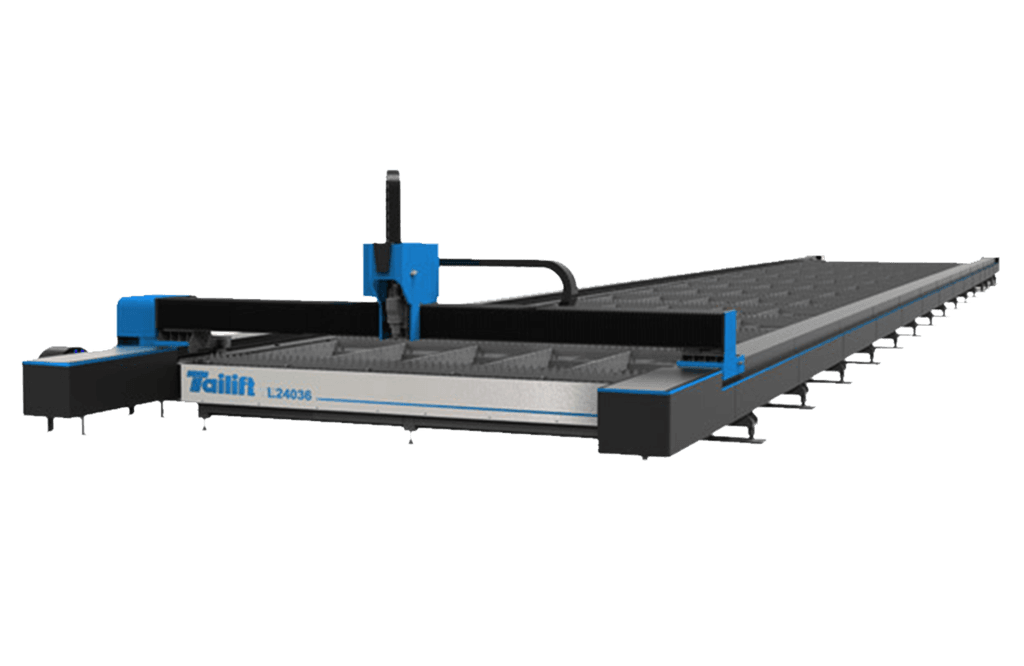

LOWER BED TYPE LASER CUTTING MACHINE
L24036
Ultra-Large Format, Infinite Extension!
Ground-Rail Gantry Fiber Laser Cutting Machine
High-Performance Large-Format Fiber Laser Cutting Machine
- Expansive Processing Range: Features a width of up to 6 meters with an unlimited extendable length to meet diverse industrial needs.
- Gantry Dual-Drive Structure: Engineered with a gantry dual-drive system for smooth and stable operation. Includes an automatic proportional valve for cutting gas pressure, eliminating the need for manual adjustment.
- Precision-Engineered Frame: Utilizing specialized machining processes, the machine body ensures long-term stability, high precision, and an extended service life.
- High-Speed Dynamics: Equipped with fast-response servo motors and high-precision gear racks to achieve exceptional accuracy in workpiece cutting.
- Advanced Height Control: Features a high-response, dual-loop capacitive height controller, providing excellent adaptability to different sheet metal surfaces and ensuring consistent cutting quality.
- Premium Laser Optics: Boasts a high-quality laser cutting head with imported optical
Specifications
| Item | unit | L24036 |
|---|---|---|
| Laser Power | W | 12000~60000 |
| Laser Power | mm | 24000x3500 |
| Max Acceleration | m/min | 60 |
| X-axis Positioning Accuracy | mm | ±0.1 |
| Y-axis Positioning Accuracy | mm | ±0.1 |
| X-axis Repositioning Accuracy | mm | ±0.05 |
| Y-axis Repositioning Accuracy | mm | ±0.05 |
| Max. Table Load | kg | 16000 |
| Input Voltage | 380V/50Hz |

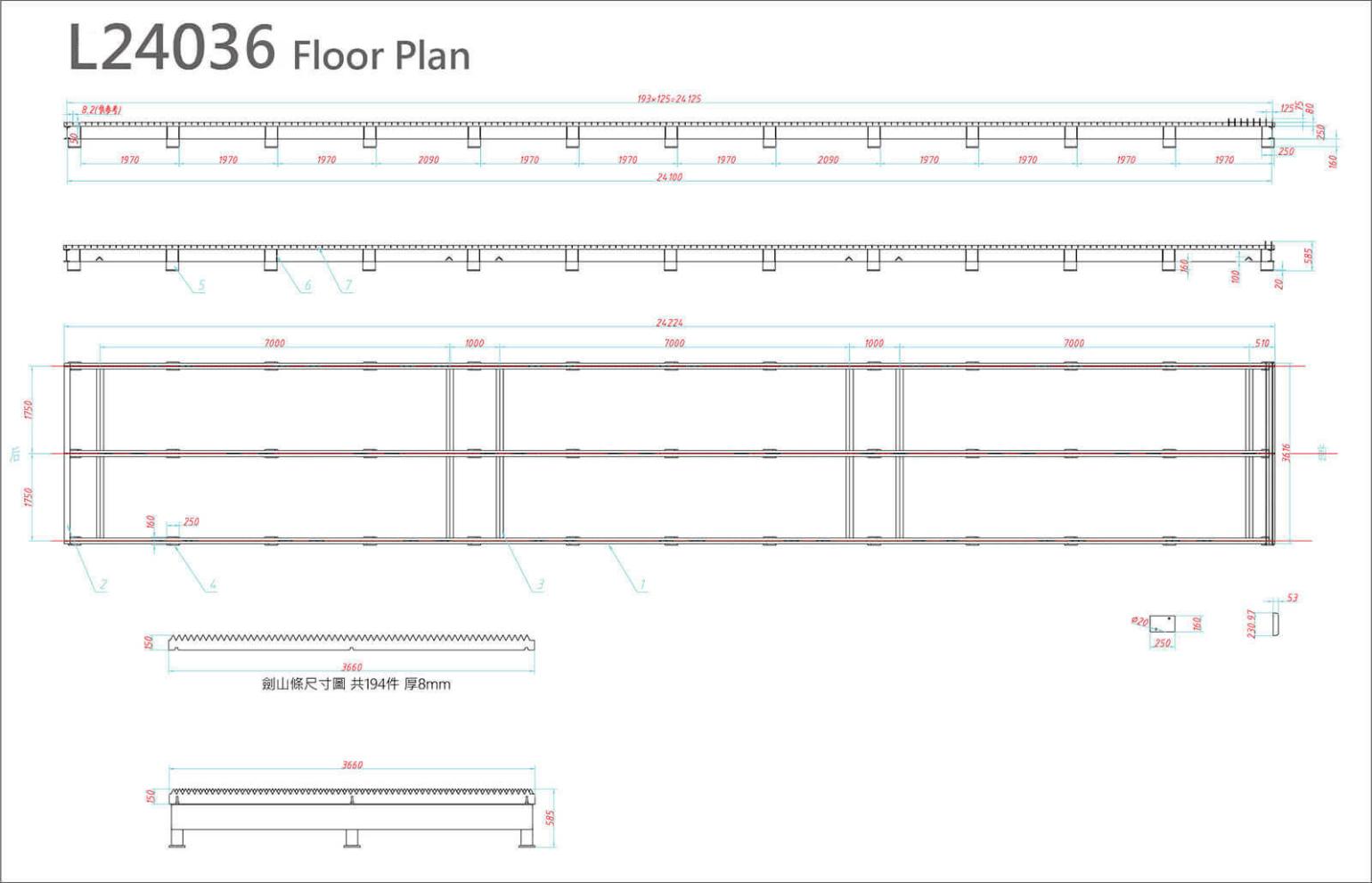

FLOOR PLAN

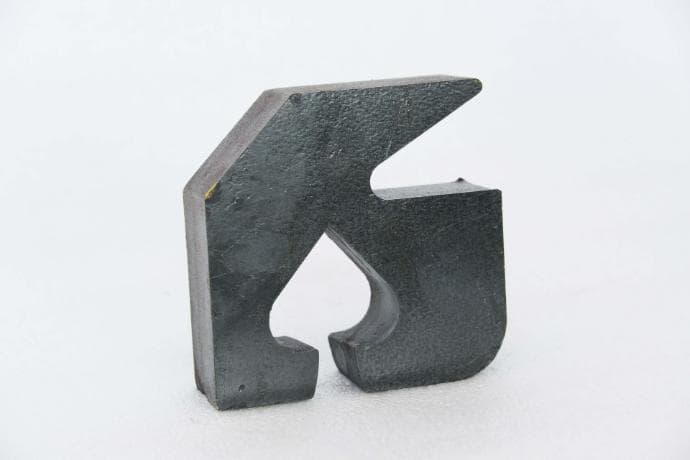

SAMPLE
FAQ
Not necessarily. The process of automating an entire factory and production line inherently involves a gradual integration—starting with the automation of individual machines and progressing to the integration of automated warehousing and management software—so planning can be done in phases based on on-site conditions.
It can integrate sheet metal processing equipment such as laser cutters, CNC press brakes, turret-type punch presses, welding equipment, and automatic multi-angle bending centers.
In addition to the processing equipment itself, it also includes automatic loading and unloading systems, automatic coil feeding systems, storage racks, management and control software, monitoring interfaces, and material flow scheduling systems.
Typically, sheet metal factories facing labor shortages, lengthy material handling times, frequent line changes, difficult-to-manage scheduling, or those seeking to extend continuous processing time.
Standalone machine automation is not sufficient; integration with automated warehousing and related management and control software is also required to achieve production automation control and Industry 4.0 goals.
