Tailift built-in operation interface.
By Optical fiber transmission to achieve Nano Interpolation, Highest-Performance, High Speed, High Accuracy, High Quality.
High Efficiency: High Cutting Speed, Cost Effect, Faster Investment Recovery.
Low Wear Down: High Thickness Sheets Processing.
Low cutting gas consumption: Stainless Steel Sheets can be processed by air also.
Low Energy Consumption and Eco-friendly: Power Consumption is 20%-30% of Co2 Laser Cutting Machine.
Low Maintenance Cost: no adjustments of the light path, no mirror.
Closed Frame Base with Gantry Type (Dual-Drive) Integrated Servo Control System to Increase Working Speed and Efficiency.
Double Working Table Saves Loading/Unloading Time and Increase Productivity.
High Cutting Speed at Thin Sheets and Stable Cutting at thick sheets.
Full Covered Machine Body with OD6+ Fiber Protection Safety Glass Window Ensure the Operator Safety and Effectively controls the Laser Radiation in the
Environments, Good Light Probation.
Dust Collection System with Divided Areas: The machine is equipped with a fully enclosed splash guard for optimal machining safety. An automatic dust collection system collects dust and waste gases in divided areas during the cutting operation, ensuring a pollution-free working environment.
Specifications
| Model | Unit | FL3015-20 | FL3015-30 | FL3015-40 | FL4020-20 | FL4020-30 | FL4020-40 | FL6020-20 | FL6020-30 | FL6020-40 |
|---|---|---|---|---|---|---|---|---|---|---|
| Movement method | 3xes simultaneausly controlled | |||||||||
| Control method | FANUC NC:31i-LB | |||||||||
| Machining range(X*Y) | mm | 3050*1525 | ||||||||
| Travel(X*Y*Z) | mm | 3070*1545*200 | ||||||||
| Machining Speed | m/min | 120/120/60 | ||||||||
| Feed Rate | m/min | 170 | ||||||||
| Acceleration | 2G | |||||||||
| Positioning Accuracy(X/Y) | mm | 0.03/1000 | ||||||||
| Repeatability accuracy | mm | ±0.02 | ||||||||
| Power Source | AC3 ph. 4wires 380/220VAC 50Hz/60HZ | |||||||||
| Resonator | W | 2000 | 3000 | 4000 | 2000 | 3000 | 4000 | 2000 | 3000 | 4000 |
| Wave Length of Laser | nm | 1070±10 | ||||||||
| Laser head | Automatic | |||||||||
| Focusing Distance for Laser Head | F125/F150(OP) | |||||||||
| Auxiliary Gas for Cutting | Oxygen10bar | |||||||||
| Nitrogen25bar | ||||||||||
| Air 16bar | ||||||||||
| Table type | Pallet Changer | Pallet Changer | ||||||||
| Pallet change time | s | 15~20 | ||||||||
| Max.workpiece load | kg | 600 | 750 | 950 | 1005 | 1350 | 2000 | 1500 | 1900 | 2400 |

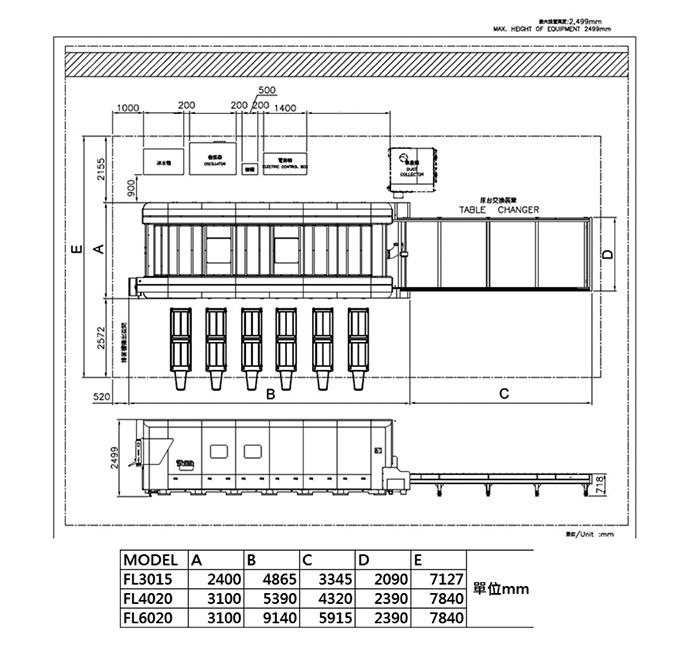

| Machine Dimensions(L*W*H) | mm | 8210 x 2400 x 2500 | ||||||||
| Machining Accuracy | ±0.10 | |||||||||
| Machine Weight | kg | 7500 | ||||||||
Accessories
FAQ
Not necessarily. The process of automating an entire factory and production line inherently involves a gradual integration—starting with the automation of individual machines and progressing to the integration of automated warehousing and management software—so planning can be done in phases based on on-site conditions.
It can integrate sheet metal processing equipment such as laser cutters, CNC press brakes, turret-type punch presses, welding equipment, and automatic multi-angle bending centers.
In addition to the processing equipment itself, it also includes automatic loading and unloading systems, automatic coil feeding systems, storage racks, management and control software, monitoring interfaces, and material flow scheduling systems.
Typically, sheet metal factories facing labor shortages, lengthy material handling times, frequent line changes, difficult-to-manage scheduling, or those seeking to extend continuous processing time.
Standalone machine automation is not sufficient; integration with automated warehousing and related management and control software is also required to achieve production automation control and Industry 4.0 goals.
