Features

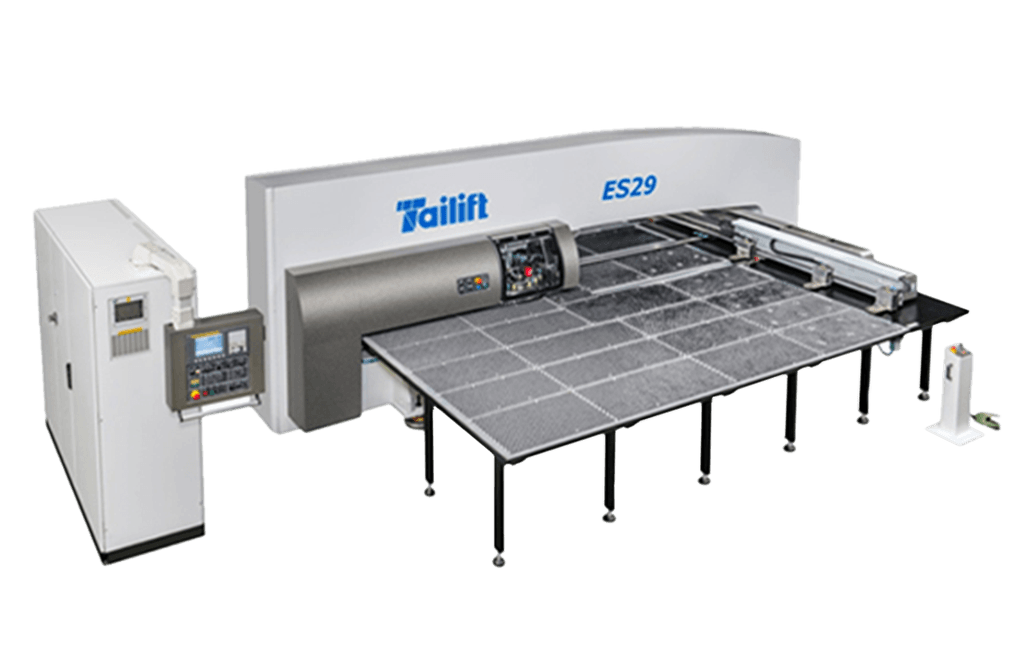

Tailift’s newly launched, ES29, AC Servo drive and numerical control technology. Featured with high speed, high precision, energy saving, and low noise. Equipped over-load protection, ES29 is an effective implement for thinner sheet metal. ES29 combined with processing abilities of punching, forming, roller cutting and tapping, an all-in-one machine. The integration assembly reduces floor space requirements effectively. Low average electricity consumption, energy-saving, eliminating the hydraulic . This ECO friendly product is the major milestone for Tailift R&D.
AC servo electric system

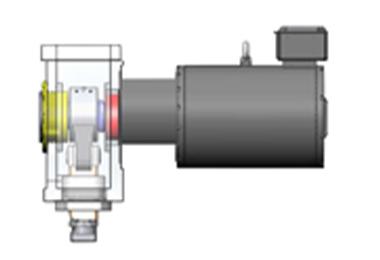

ES29 equipped with high efficient AC Servo motor with single servo crank type punch head assembly without flywheel which results in high precision, Low noise and power consumption is only half of hydraulic models. No need of hydraulic oil and worry about environmental issues. High punching speed reduces the production time and ensure cost down.

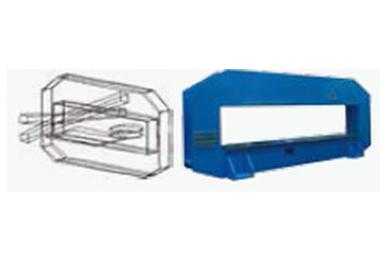

Closed O Shape Frame Structure
High Rigidity & High Stability
The closed O shape frame structure is analyzed by the “Finite Element Analysis” software to simulate stress / strain conditions, enables the optimal structure design.
High Tensile Strength Steel Construction
The machine frame is welded by high tensile strength steel, which is subject to high tensile strength tests, normalization treatment and vibration stress relief so as to ensure the machine assembling accuracy.

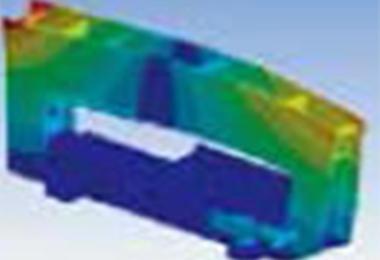

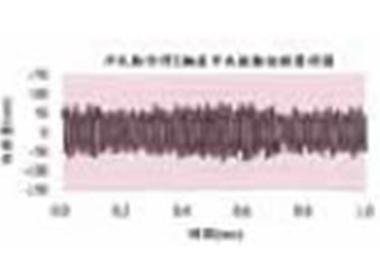

Transient State Analysis

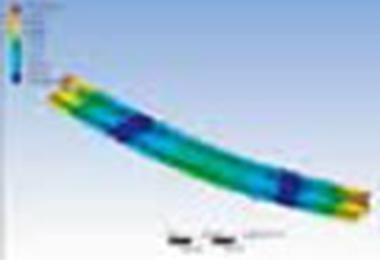

Static Analysis
Model Analysis
Transient State Analysis
Specifications
| Item | Unit | ES29 |
|---|---|---|
| Punching Capacity | Ton | 30 |
| X Traverse Length | mm | 2500±10 |
| Y Traverse Length | mm | 2000±10 |
| Max Sheet Size | mm | 2000x5000 |
| Max Sheet Thickness | mm | 4.5 |
| Max Mass of Material | kg | 150 |
| X Axis Traverse Speed | m/min | 80 |
| Y Axis Traverse Speed | m/min | 70 |
| Max Traverse Speed | m/min | 105 |
| Punching Speed at 25mm pitch | hits/min | 300 |
| Nibbling Speed | hits/min. | 600 |
| Tool Type | 長刀 | |
| Max Punching Diameter | mm | 114.3 |
| Number of Tool Stations | pcs | 40 |
| A(1/2) | pcs | 24-<20/4(Round)> |
| B(1-1/4) | pcs | 8 |
| C(2) | pcs | 4 |
| E(4-1/2) | pcs | 2 |
| AI(D3-1/2) | pcs | 2 |
| Turret Rotating Speed | rpm | 30 |
| Auto Index Rotating Speed | rpm | 50 |
| Ram Stroke Distance | mm | 0-31 |
| Working Table | 毛刷/萬向鋼球複合檯面 | |
| Number of Sheet Clamps | pcs | 3 |
| Power Supply | KVA | 40 |
| Voltage | V | 220/380/410/440 |
| Air Supply | NL/min | 5 |
| Air Pree | bar | 5 |
| Machine Dimensions(L*W*H) | mm | 6500×5200×2250 |
| Machine net weight(Approx) | kg | 16000 |
| CNC controller | FANUC Oi-PF | |
| Serial Interface | RS232/RJ45/PCMCIA | |
| Punching Precision | mm | ±0.1 |
| Reposition accuracy | mm | 0.05 |
| Ram memory | KB | 512 |
Specifications are subjects to change without prior notice. Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials. Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.
Accessories
| Standard | Optional |
|---|---|
| Movable ram | Auto tool lubrication system |
| Reposition cylinder | CAD/CAM Software |
| Sheet distortion sensor | Heavy-duty clamp |
| Large brush table | |
| Die holder brush | |
| Supporting Ball Set | |
| Anti-vibration foot mounts | |
| Japanese FANUC controller |

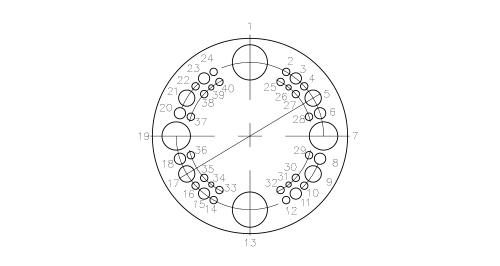

Station Arrangement
40 stations
| Type | Specification | Q'ty |
|---|---|---|
| A-Round | 1/2" | 4 |
| A | 1/2" | 20 |
| B | 1-1/4" | 8 |
| C | 2" | 4 |
| E | 4-1/2" | 2 |
| Auto Index | ||
| D | 3-1/2" | 2 |

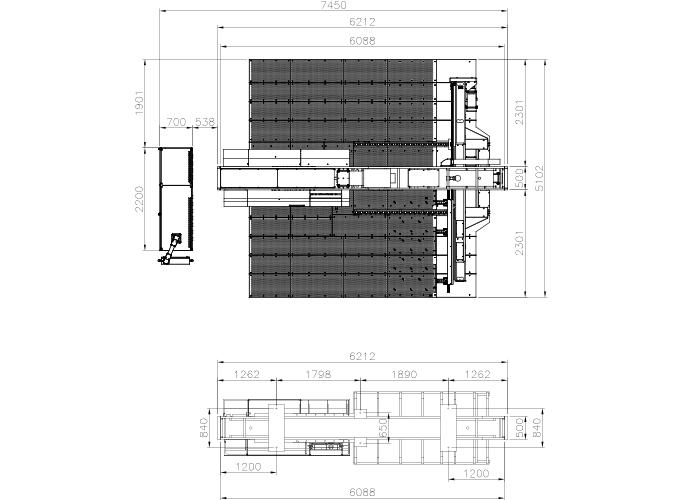

Layout
