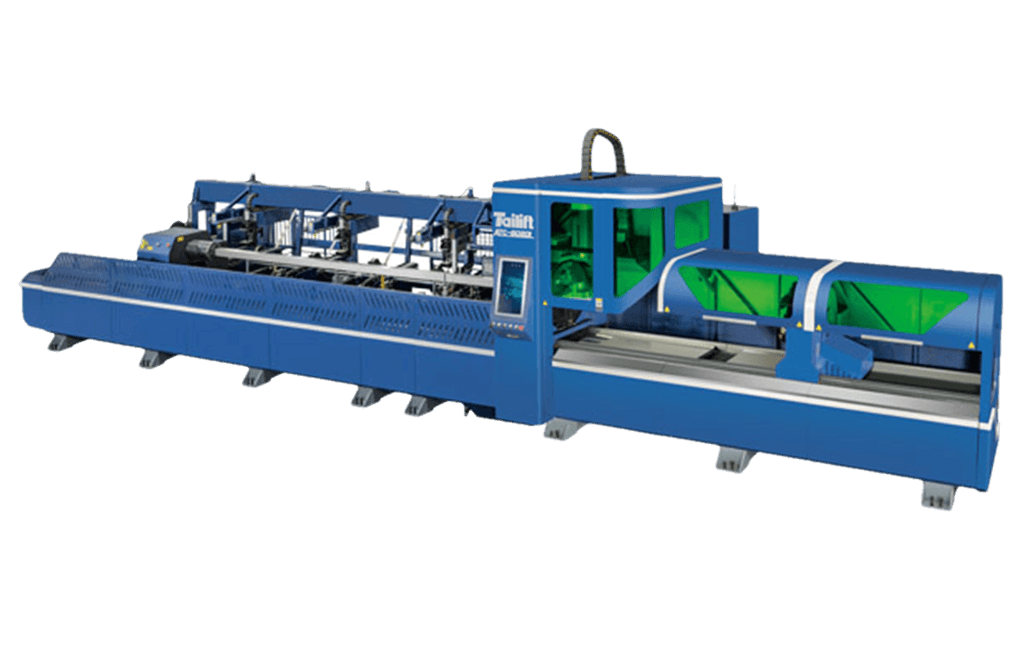

ATC6020L is a mid-range and high-end Fiber laser tube cutting machine specially developed by Tailift for tube processing. From configuration selection to assembly process, post-training and after-sales service, to truly build a laser tube cutter that is reliable for customers.
Specifications
| Description | unit | ATC6020L |
|---|---|---|
| Tube Support | mm | round tubeΦ20-φ220，square tube≤155， L≤6000； |
| X Traverse Length | mm | 220 |
| Y Traverse Length | mm | 6050 |
| Z Traverse Length | mm | 120 |
| X、Y Punching Precision) | mm | ±0.03/1000mm |
| X、Y Repeat Punching Precision | mm | ±0.02/1000mm |
| Acceleration | m/s | 1.5G |
| X、Y Maximum axis movement speet | m/min | 100 |
| Chuck maximum speed | r/min | 100 |
| Power Cappocity | Yaskawa | X1kw1套,Y2.9kw3套,Z 0.4kw1套, W2.9kw 3套 |
| tailing | mm | ≥0（Depending on the pipe will be different） |
| Machine dimensions(L、W、H) | mm | 約 12435×5500×2400 |
| Laser Power | W | 2000 |
| Controller System | Tubewain | |
| All Power Cappocity | Kg | 43KW |
| Voltage | V | 380V/50Hz |
FLOOR PLAN
SAMPLE
FAQ
Not necessarily. The process of automating an entire factory and production line inherently involves a gradual integration—starting with the automation of individual machines and progressing to the integration of automated warehousing and management software—so planning can be done in phases based on on-site conditions.
It can integrate sheet metal processing equipment such as laser cutters, CNC press brakes, turret-type punch presses, welding equipment, and automatic multi-angle bending centers.
In addition to the processing equipment itself, it also includes automatic loading and unloading systems, automatic coil feeding systems, storage racks, management and control software, monitoring interfaces, and material flow scheduling systems.
Typically, sheet metal factories facing labor shortages, lengthy material handling times, frequent line changes, difficult-to-manage scheduling, or those seeking to extend continuous processing time.
Standalone machine automation is not sufficient; integration with automated warehousing and related management and control software is also required to achieve production automation control and Industry 4.0 goals.
