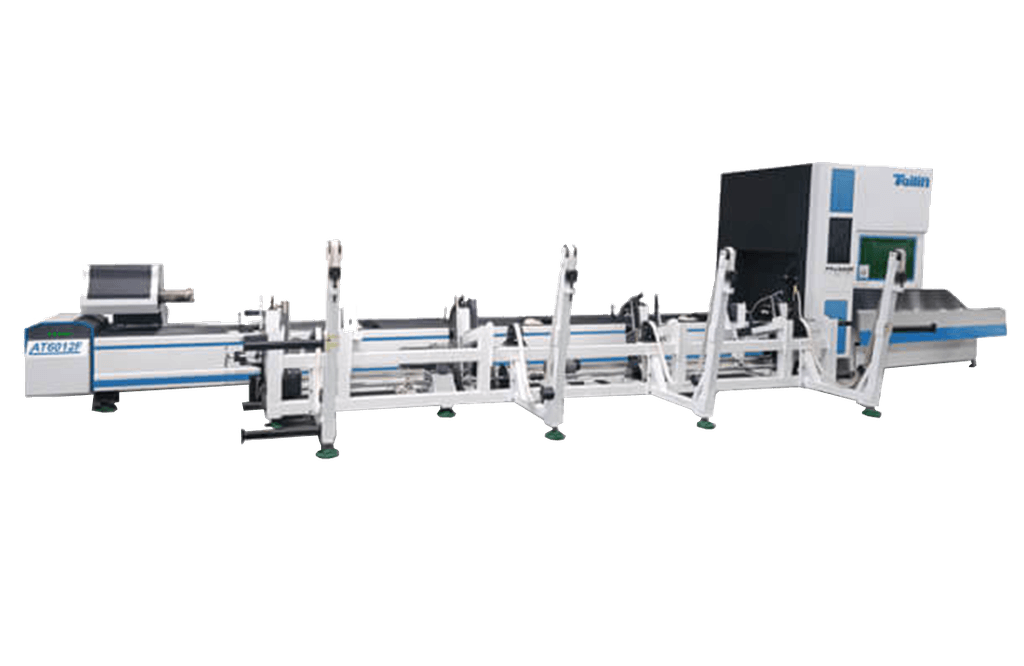

Fiber Laser Tube Cutter Machine
AT6012F
Fully enclosed pneumatic chuck, with good dust-proof performance,
double-row wheel claw design, improve cutting accuracy.
AT6012F is a mid-range and high-end Fiber laser tube cutting machine specially developed by Tailift for tube processing. From configuration selection to assembly process, post-training and after-sales service, to truly build a laser tube cutter that is reliable for customers.
Specifications
| Description | unit | AT6012F |
|---|---|---|
| Pipe processing size | mm | TubeΦ15-φ120，Square tube side length≤≤85， L≤6500； |
| X Traverse Length | mm | 160 |
| Y Traverse Length | mm | 6050 |
| Z Traverse Length | mm | 120 |
| Punching Precision | mm | ±0.05/1000mm |
| Rrposition Accuracy | mm | ±0.03/1000mm |
| Acceleration | m/s | 1G |
| Maximum axis movement speed | m/min | 70 |
| Chuck maximum speed | r/min | 150 |
| Servomotor | Delta | |
| Tail length | mm | 90≥0（Depending on the pipe will be different） |
| Machine dimensions(L、W、H) | mm | 10700×3500×2500 |
| Laser Power | W | 1000/2000/3000 |
| Controller System | Fscut5000 | |
| Maximum Loading Weight | Kg | 1200 |
| Power supply | V | 380V/60Hz |
FLOOR PLAN
SAMPLE
