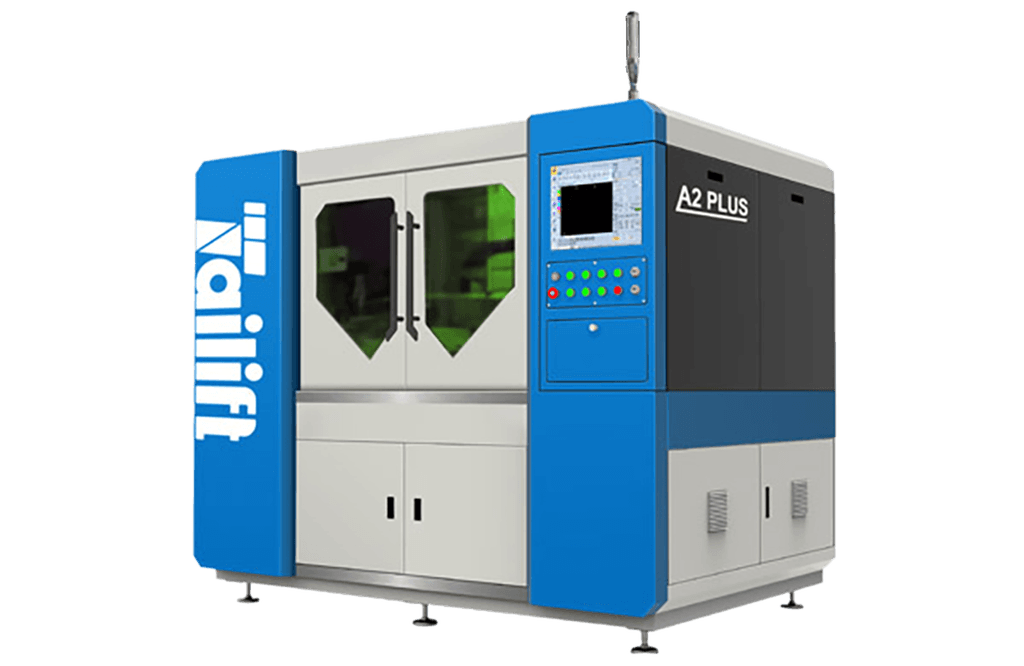

High Precision Fiber Laser Cutting Machine
A2 PLUS
HIGH PRECISION FIBER LASER CUTTING MACHINE
equipped with marble platform, with its high rigidity, it can stablize the acceleration performance, and the structure won't deform after long-term use.
for high speed sheet metal cutting, it provides high-quality, high-effeciency cutting and high material utilization during whole process.
equipped with linear motor and precision linear slides, which provide high-precision performance maintainance, low-wear and high positioning accuracy.
Specifications
| Description | unit | A2 PLUS-2KW |
|---|---|---|
| punching precision | mm | ＜±0.02 |
| reposition accuracy | mm | ≤ ± 0.005 |
| machine range | mm | 900×650 |
| acceleration | 1.5G | |
| X axis traverse speed | m/min | 60 |
| X trave | mm | 650 |
| X axis punching precision | mm | ±0.02 |
| X axis reposition accuracy | mm | ±0.005 |
| Y axis traverse speed | m/min | 60 |
| Y trave | mm | 900 |
| Y axis punching precision | mm | ±0.03 |
| Y axis reposition accuracy | mm | ±0.005 |
| Z travel | mm | 100 |
| controller | EtherCAT | |
| optical scale | μm | 0.5 |
| resonator | SWIROC 2000W | |
| voltage regulator | KVA | 30 |
| smoke exhaust system | vacuum cleaning | |
| machine cover | machine cover+OD6 windows | |
| processing scope X:Y:Z | mm | 900×650×100 |
| span length | mm | 650 |
| machine dimensions | mm | 2080x2010 |

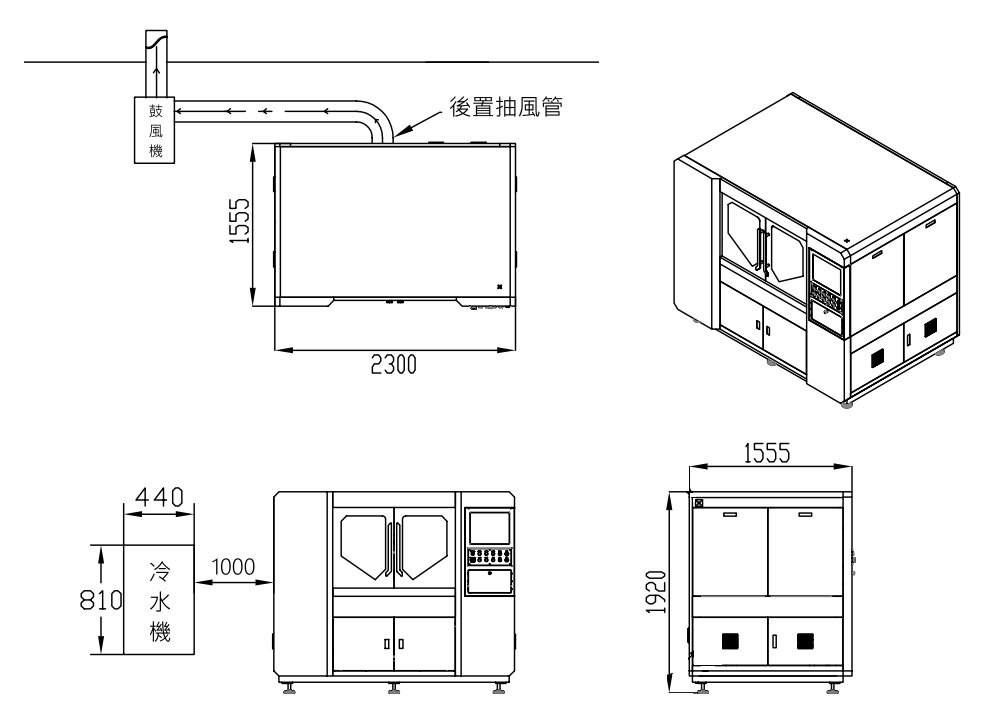

FLOOR PLAN
SAMPLE
 |  | |
|---|---|---|
| Sample | High Reflective Material | Carbon Steel |
| Model | A2 PLUS | |
| Product | Metal gasket | Auto mobile accessories |
| Material | Stainless steel, Aluminum, Copper, Brass | Carbon steel |
| Assistive Gas | Nitrogen | Oxygen |
High reflective material : stainless steel, Aluminum, copper, brass.
